86CrMoV7 (1.2327) Tool Steel: An exceptional hot work tool steel distinguished by its ability to maintain exceptional performance even at high temperatures. Through a precise alloying process, this high-performance alloy steel achieves a perfect combination of wear resistance, high toughness, and thermal stability.

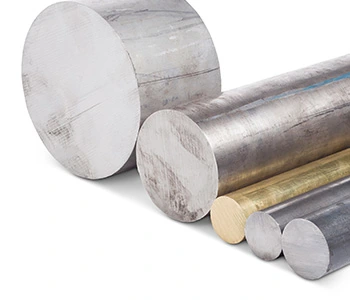

904L stainless steel rods are widely used in demanding applications requiring the highest material quality due to their excellent corrosion resistance, particularly in acidic and chloride-containing environments.
| Type | Size / Dimensions |
|---|---|
| 904L SS Round bar size | Diameter: 3-~800mm |
| Alloy 904L Hex Bar size | 2-100mm A/F |
| 904L Steel Flat bar size | Thickness: 2 -100mm; Width: 10 to 500mm |
| ASTM A276 UNS N08904 Square bar | 4 to 100mm |
| 904L Stainless Steel Angle bar | 3*20*20~12*100*100 |
| 904L Stainless Steel Section | 3.0 to 12.0mm thickness |
| N08904 SS Channel Bar | 80 x 40 to 150 x 75 section |
| SS 1.4539 Hollow Bar | 32 OD x 16 ID to 250 OD x 200 ID |
| Alloy 904L Round Bar Finish | Cold drawn, centreless ground, hot rolled, smooth turned, polished |
| UNS | WERKSTOFF NR. | JIS | EN Standard |
|---|---|---|---|
| N08904 | 1.4539 | SUS 904L | X1NiCrMoCu25-20-5 |
Chemical Composition (%)
| C: 0.02 | Si: 1 | Mn: 2 | P: 0.045 | S: 0.035 |
| Cr: 19.0-23.0 | Ni: 23.0-28.0 | Mo: 4.0-5.0 | Cu: 1.0-2.0 | Fe: Balance |
Mechanical Properties
| Density | 7.95 g/cm3 |
|---|---|
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | MPa – 490 / Psi – 71000 |
| Yield Strength | MPa – 220 / Psi – 32000 |
| Elongation | 35% |
