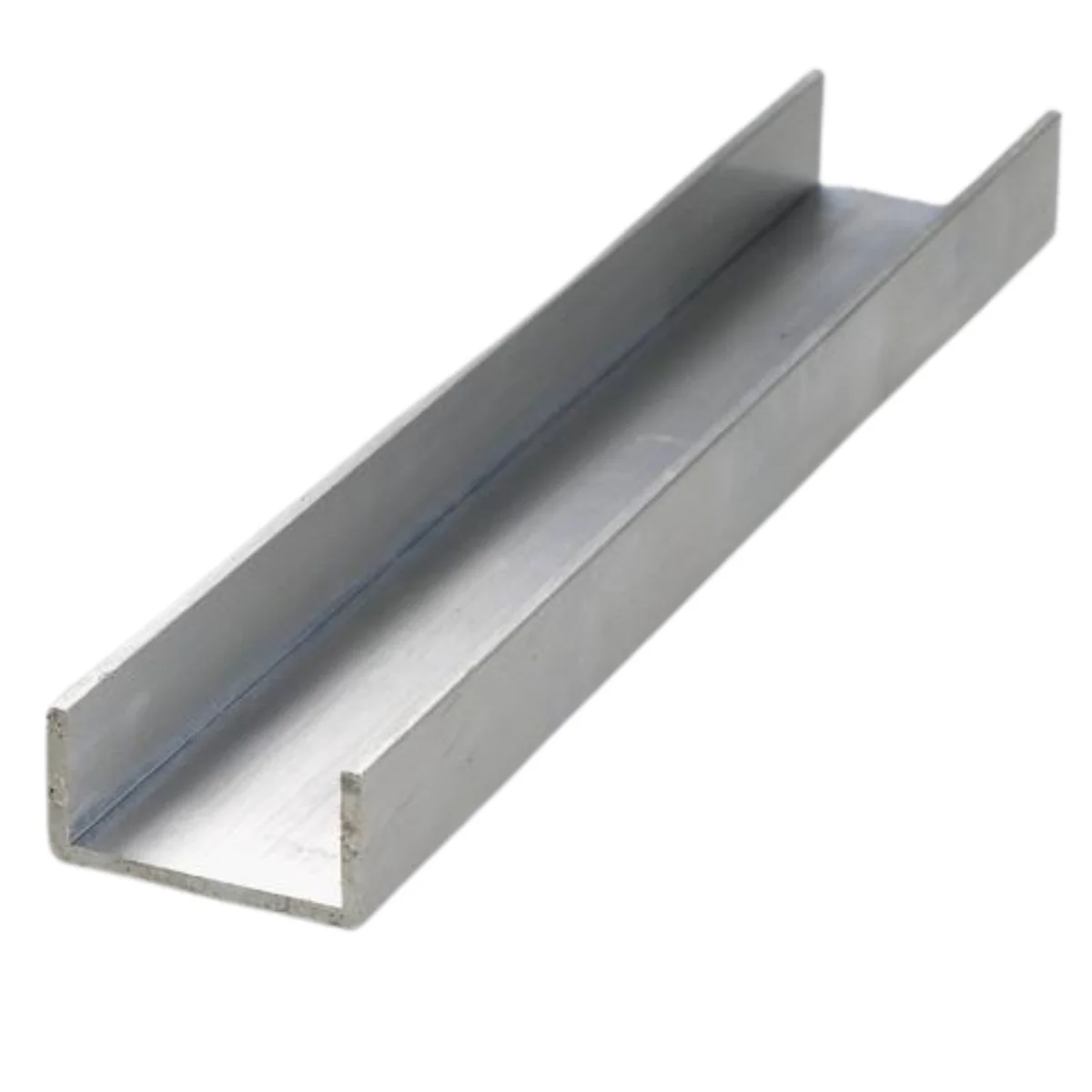

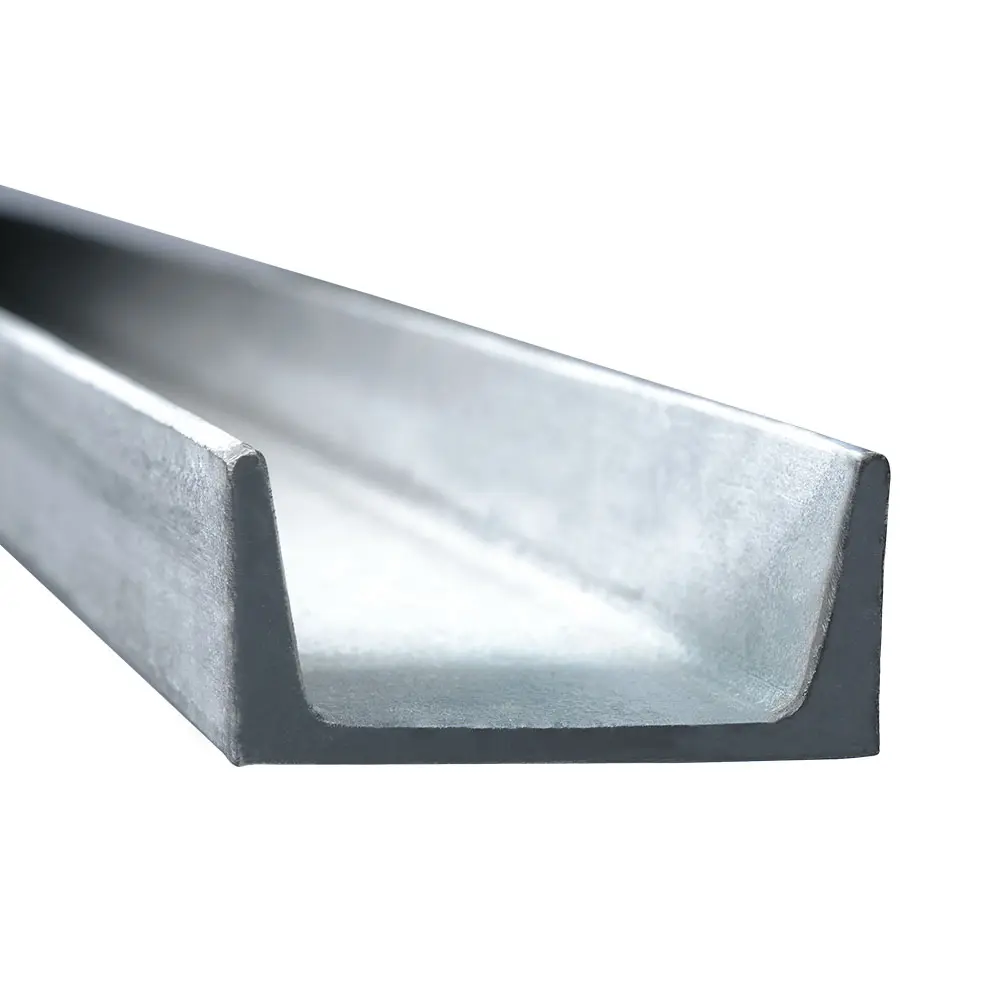

304 stainless steel channel steel is a long steel strip with a grooved cross section, similar to stainless steel I-beam. Stainless steel channel steel is divided into ordinary channel steel and light channel steel. The model and specification are expressed as waist height (h) × leg width (b) × waist thickness (d), in millimeters. Its specification expression method, such as 120*53*5, means a channel steel with a waist height of 120 mm, a leg width of 53 mm, and a waist thickness of 5 mm, or 12# channel steel. Channel steels with the same waist height, if there are several different leg widths and waist thicknesses, also need to add a b c to the right of the model to distinguish them, such as 25a# 25b# 25c#, etc.
Stainless steel channel steel is mainly used in building structures, vehicle manufacturing and other industrial structures. Channel steel is also often used in conjunction with I-beams.
Used for building structures, vehicle manufacturing and other industrial structures.
A steel with wide legs and thin walls, offering better economic effects. Specifications range from 5-40#.
Excellent corrosion resistance, resisting most chemical substances in harsh environments.
Outstanding high temperature resistance, maintaining stability without deformation.
High structural strength capable of withstanding significant pressure and weight.
Easy to process to meet specific requirements for different shapes and sizes.
| Specification | Height (mm) | Width (mm) | Thickness (mm) | Sectional Area (cm²) | Theoretical Weight (kg/m) |
|---|---|---|---|---|---|
| 5# | 50 | 37 | 4.5 | 6.928 | 5.438 |
| 6.3# | 63 | 40 | 4.8 | 8.451 | 6.634 |
| 8# | 80 | 43 | 5.0 | 10.248 | 8.045 |
| 10# | 100 | 48 | 5.3 | 12.748 | 10.007 |
| 14#a | 140 | 58 | 6.0 | 18.516 | 14.535 |
| 16#a | 160 | 63 | 6.5 | 21.962 | 17.24 |
| 18#a | 180 | 68 | 7 | 25.699 | 20.174 |
| 20#a | 200 | 73 | 7 | 28.837 | 22.637 |
| 25#b | 250 | 80 | 9 | 39.917 | 31.335 |
| 28#c | 280 | 86 | 11.5 | 51.234 | 40.219 |
| 32#b | 320 | 90 | 10 | 54.913 | 43.107 |
| 40#c | 400 | 104 | 14.5 | 91.068 | 71.488 |
