| Standard | JIS, AISI, ASTM, GB, DIN, EN | |||

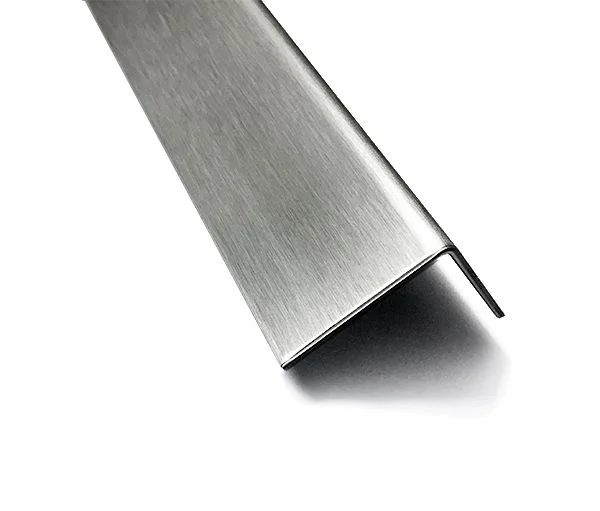

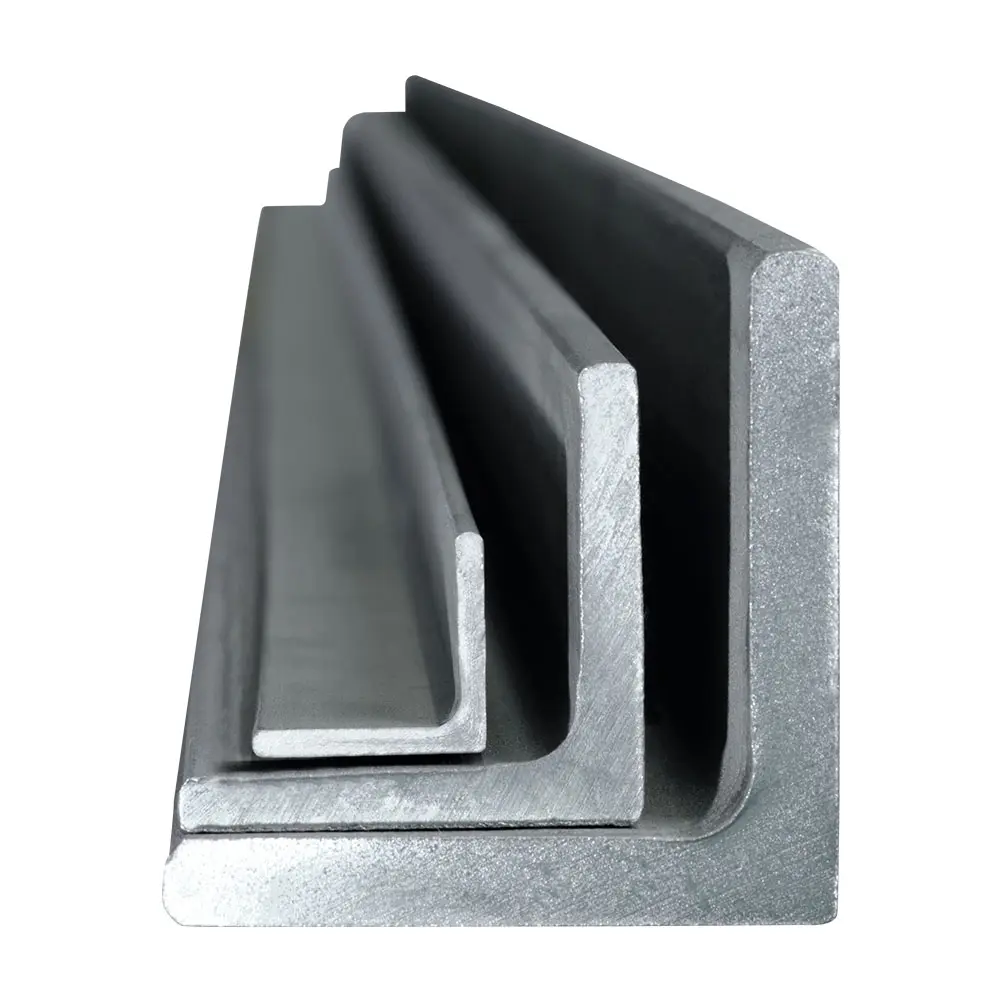

| Property | Stainless steel equal angle | |||
| Specifications | 20# ~ 100# | |||
| 20×20×(3,4,5) | 30×30×(3,4,5) | 40×40×(3,4,5,6) | 50×50×(3,4,5,6) | |
| 60×60×(4,5,6,8) | 63×63×(4,5,6,8) | 65×65×(4,5,6,8) | 70×70×(5,6,8,10) | |
| 75×75×(5,6,8,10) | 80×80×(5,6,8,10) | 100×100×(8,10,12) | - | |
| Length | Normal length is 3-6m or customized requirement | |||
| Application | Structure steel | |||
| Manufacturing Process | Hot rolled | |||
| Surface Treatment | Pickled, sandblasting, polished | |||
| Main Grade | 201, 301, 302, 303, 304, 321, 316, 316L, 309, 310, 310S, 431, 430, 420 | |||
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 13 |
| Density | Melting Point | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C | 515 MPa | 205 MPa | 35% |
| 25*25*3 | 75*75*6 | 125*125*12 | 32*20*4 | 75*50*8 | 110*70*8 |
| 25*25*4 | 75*75*7 | 125*125*14 | 40*25*3 | 75*50*10 | 110*70*10 |
| 30*30*3 | 75*75*8 | 140*140*10 | 40*25*4 | 80*50*5 | 125*80*7 |
| 40*40*3 | 80*80*6 | 160*160*12 | 50*32*3 | 80*50*6 | 125*80*12 |
| 50*50*5 | 90*90*10 | 180*180*14 | 63*40*5 | 100*63*8 | 160*100*14 |
| 63*63*7 | 110*110*12 | 200*200*16 | 70*45*6 | 100*80*10 | 200*125*14 |
