Hastelloy B2 is a wrought nickel-molybdenum alloy that can be used in the "as welded" condition. This alloy has excellent resistance to all temperatures and concentrations of hydrochloric acid. Additionally, it has good stress corrosion cracking and pitting resistance as well. However, due to the presence of high molybdenum content, this alloy is premium-grade.

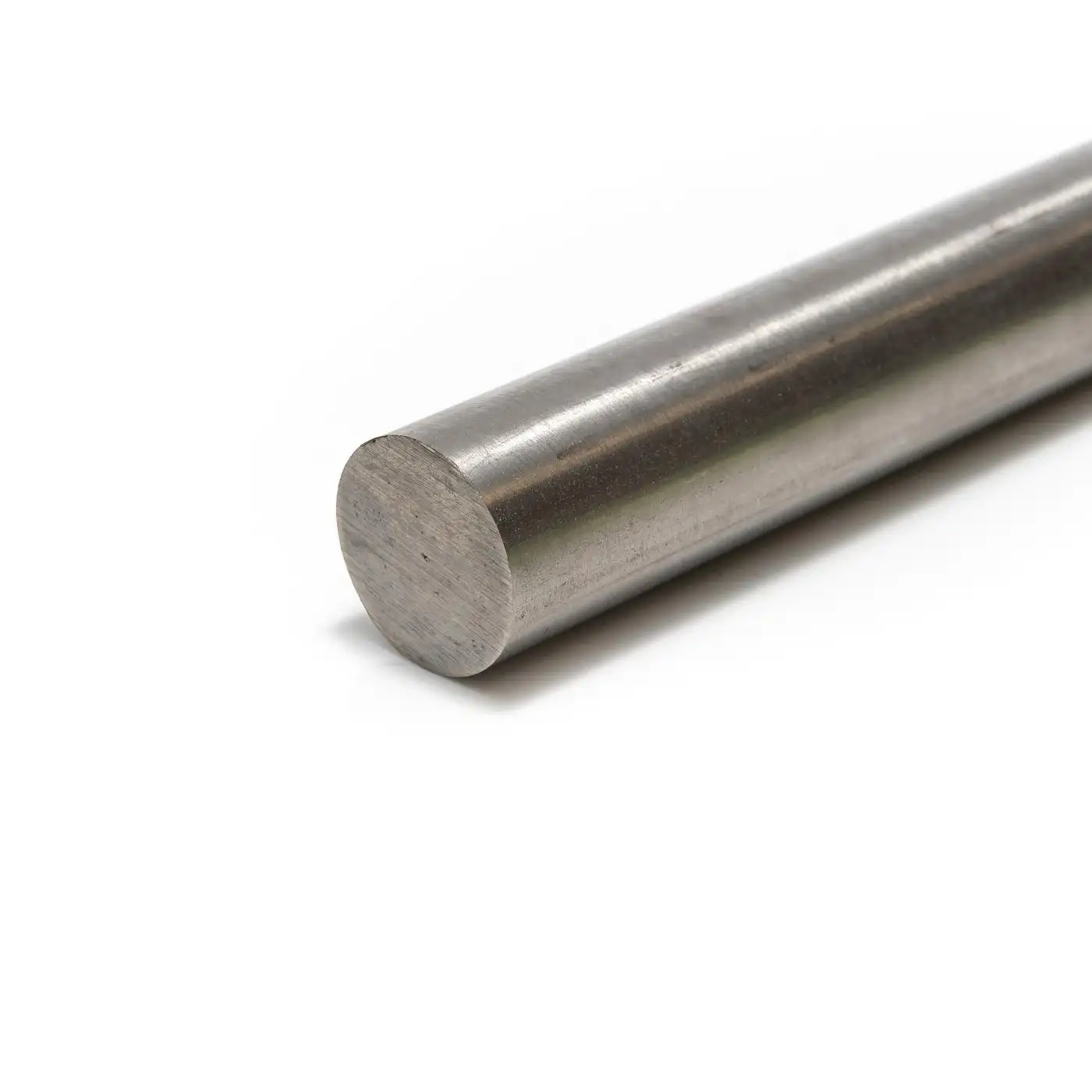

Hastelloy B2 bars are high-performance nickel-molybdenum alloy bars known for their exceptional resistance to corrosion, especially in reducing environments. They offer superior resistance to hydrochloric acid, sulfuric acid, and other aggressive chemicals. These bars are widely used in chemical processing, pharmaceutical, and oil and gas industries for their reliability in harsh conditions.
Hastelloy B2 bars boast excellent machinability characteristics when compared with other nickel-based alloys, enabling for precise shaping and customization. Their ease of machining contributes to their versatility within various manufacturing processes.
Common applications include reactors, heat exchangers, valves and pumps exposed to highly corrosive environments, providing superior corrosion resistance, machinability and weldability while prolonging critical infrastructure's longevity and reliability.
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Hastelloy B2 | 2.4617 | N10665 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 9.2g/cm3 | 1370℃ (2550℉) | Psi-1,15,000, MPa-760 | Psi- 52,000, MPa-350 | 40% |
| Grade | Ni | Mo | Cr | Fe | Mn | C | P | S | Si |
|---|---|---|---|---|---|---|---|---|---|
| Hastelloy B2 | Bal | 26-30 | 1.0 | - | 0.1 | 0.02 | 0.04 | 0.03 | 0.1 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 - 75.00 | 1/8 - 3.00 | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 - 75.00 | 5/6 - 2.50 | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9-h10-h11 |
| Grade | Hastelloy Round Bar |
|---|---|
| Square bar size | 4 to 100mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Hot Rolled Hex Bar | 2-100mm A/F |
| Angle bar size | 3mm*20mm*20mm ~ 12mm*100mm*100mm |
| Surface Finish | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Form Available | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Rings, Hollow, Hex (A/F), Billet, Ingot. |
| Condition | Hardened & tempered, annealed |
The main advantage is its exceptional resistance to hydrochloric acid at all concentrations and temperatures, along with superior performance in reducing environments.
Yes, it is a wrought nickel-molybdenum alloy specifically designed to be used in the as-welded condition while maintaining corrosion resistance.
They are widely utilized in chemical processing, pharmaceuticals, oil & gas production, and pulp & paper manufacturing.
They offer high tensile strength (760 MPa), good yield strength (350 MPa), and an elongation of approximately 40%.
Yes, the alloy exhibits good resistance to both pitting and stress corrosion cracking in aggressive chemical environments.
Available finishes include Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting, Polished, and Hairline finishes.
